Design and operating principle

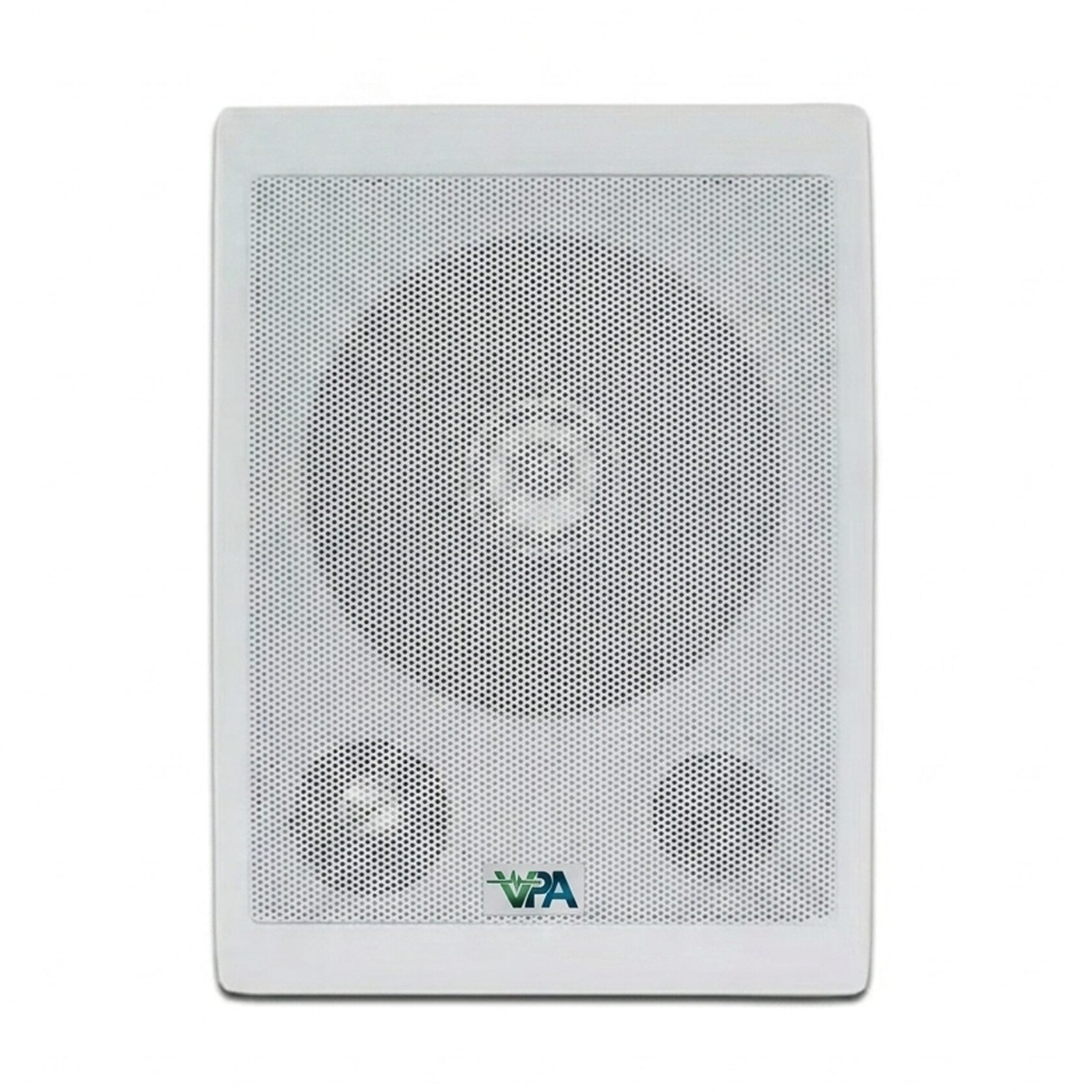

The unit is built in a wall-mount enclosure. It connects to a 70–110V PA line through a built-in matching transformer. A two-way design — a 6.5″ driver plus a 3″ high-frequency driver — extends the frequency range and improves speech intelligibility and music reproduction quality. Frequency range is 100 Hz – 16 kHz, sensitivity 90 dB, sound pressure level 97 dB (continuous) / 100 dB (peak).
Housing color is white. With IP44 ingress protection and an operating temperature range of −40 °C to +70 °C, the loudspeaker is suitable for corridors, retail floors, warehouses and other facilities, including unheated ones.
Warranty and certification
- EAC certificate of conformity
- 24-month manufacturer warranty
- Service life of at least 10 years.
