MK & MC PA Mixer Amplifiers — 50 to 2000 W
Mixer amplifiers are the core of any voice alarm and music broadcasting system. This category brings together two product lines. The MK series offers nine versatile models from 50 to 2000 W, with independent volume control across 2 to 8 zones, a built-in media player (MP3 / USB / FM / Bluetooth) and a priority microphone input. The MC series comprises six-zone amplifiers of 120, 350 and 650 W that support VPA-MC6 remote paging consoles for zoned announcements from several posts. Every model works with 70V and 100V line systems as well as low-impedance loudspeakers of 4–16 Ω.
VPA-MK 50 Mixer Amplifier
VPA-MK 100Z3 Mixer Amplifier

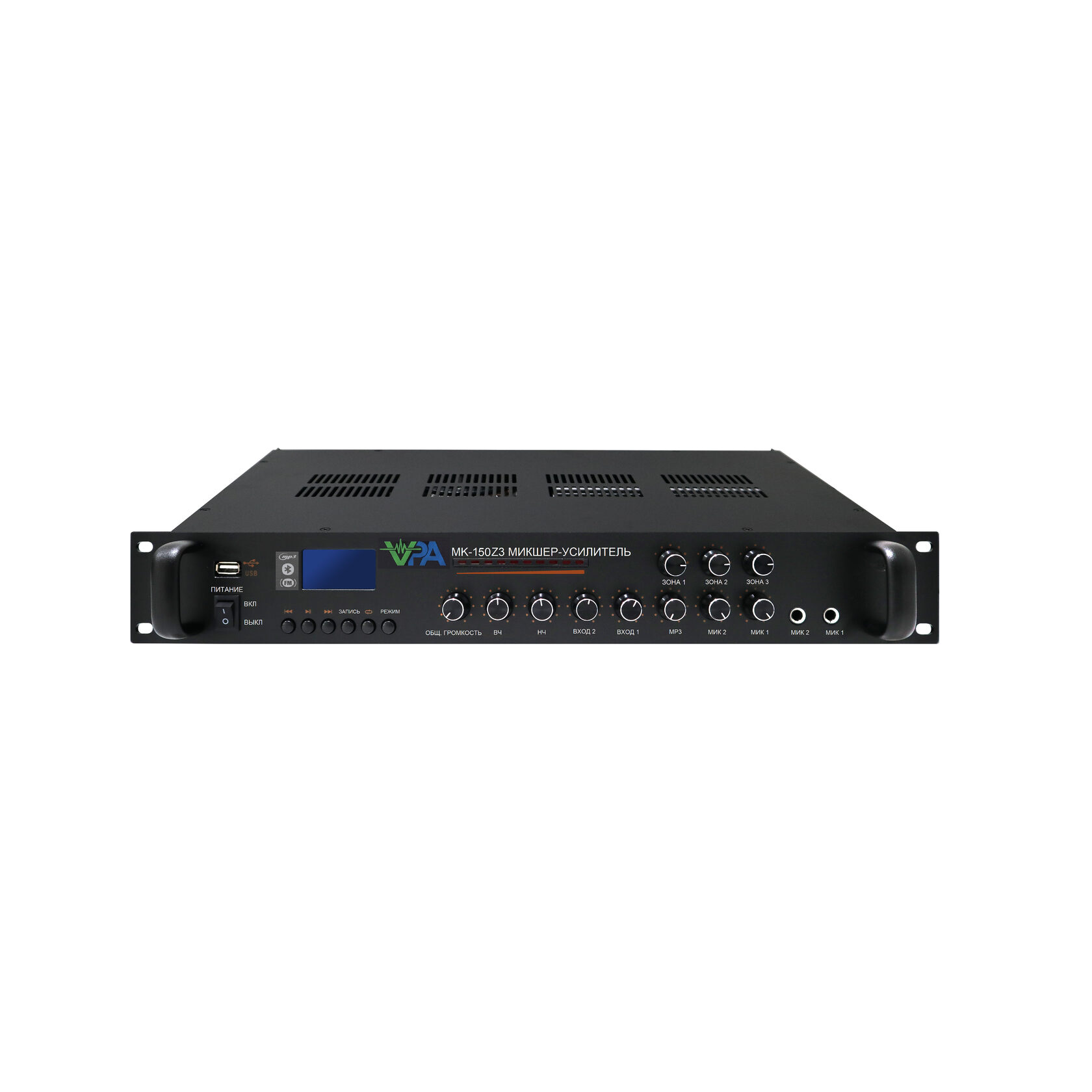

VPA-MK 150Z3 Mixer Amplifier

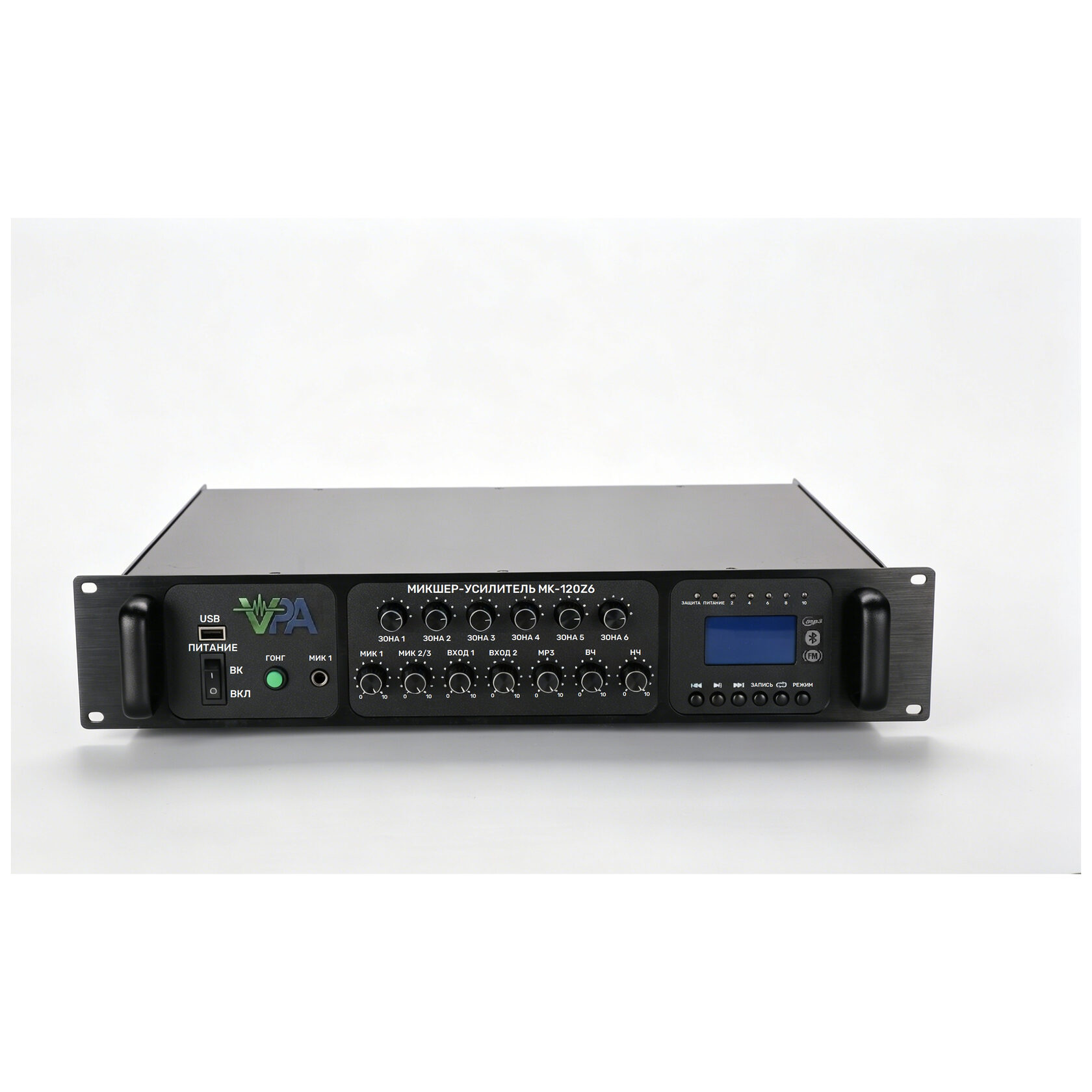

VPA-MK 120Z6 Mixer Amplifier
VPA-MK 240Z6 Mixer Amplifier
VPA-MK 360Z6 Mixer Amplifier
VPA-MK 700Z6 Mixer Amplifier
VPA-MK 1000Z8 Mixer Amplifier

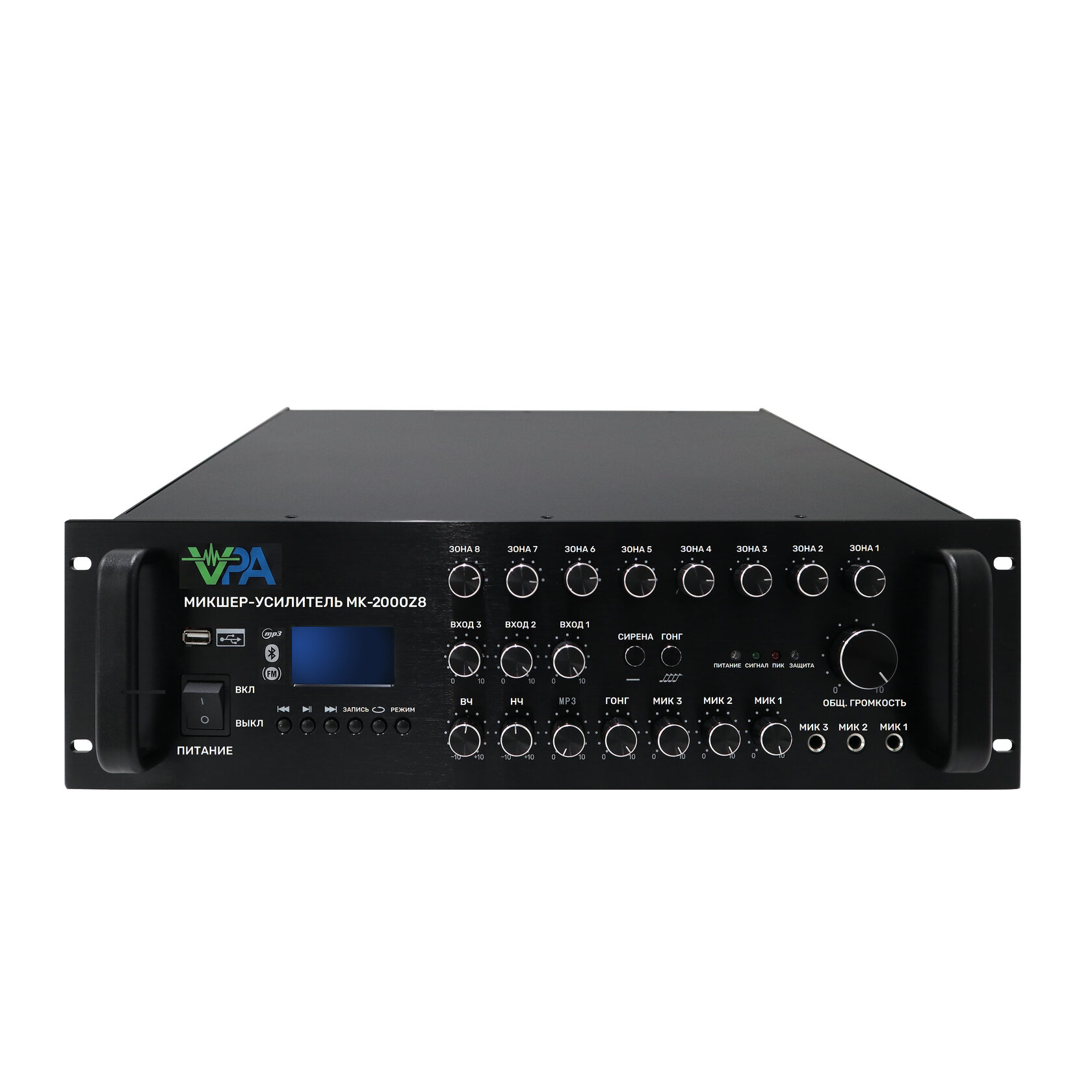

VPA-MK 2000Z8 Mixer Amplifier
VPA-MC 120Z6 Mixer Amplifier with VPA-MC6 Console

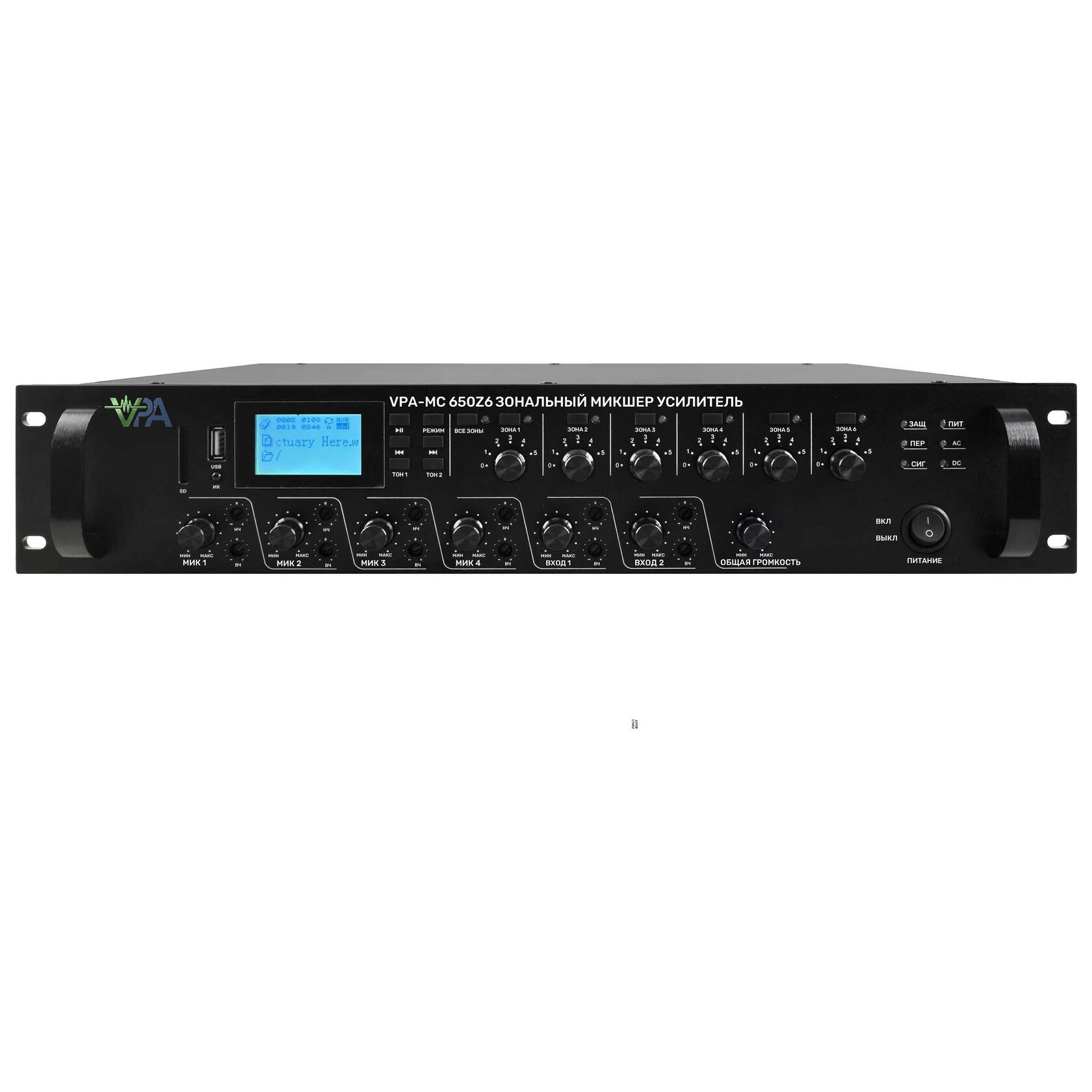

VPA-MC 350Z6 Mixer Amplifier with VPA-MC6 Console
VPA-MC 650Z6 Mixer Amplifier with VPA-MC6 Console

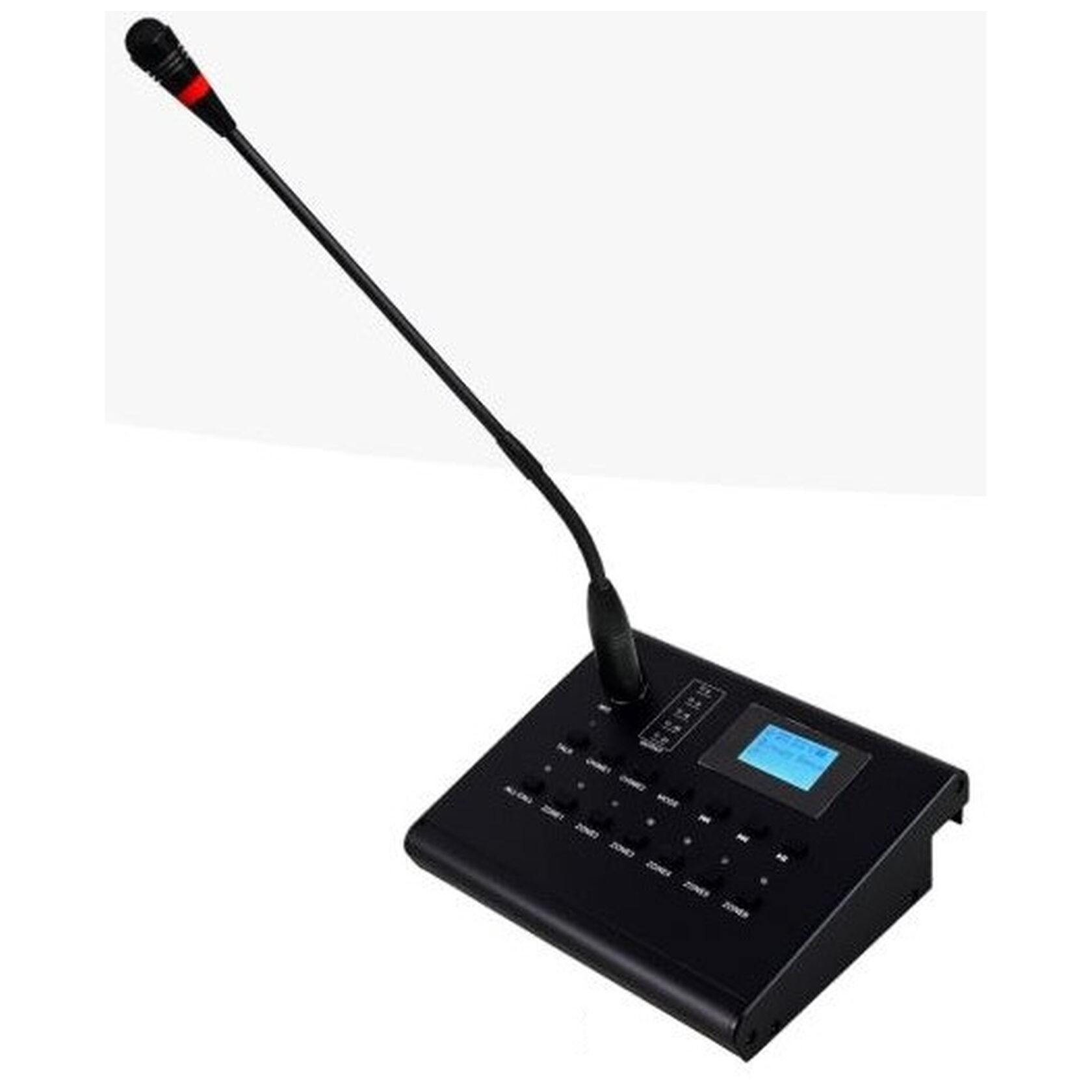

VPA-MC6 Paging Microphone Console for the VPA-MC Series
MK series — versatile multi-zone amplifiers
The core line for voice alarm and background music systems. The built-in media player streams music from USB and Bluetooth without an external source, while the priority microphone input automatically ducks the background program during an announcement.
- VPA-MK 50 — 50 W, 2 zones: small shops, cafés and offices up to 100 m²
- VPA-MK 100Z3, VPA-MK 150Z3 — 100–150 W, 3 zones: mid-size venues, restaurants, hotels
- VPA-MK 120Z6, VPA-MK 240Z6, VPA-MK 360Z6 — 120–360 W, 6 zones: shopping centres, schools, hospitals
- VPA-MK 700Z6 — 700 W, 6 zones: large malls, warehouses, sports complexes
- VPA-MK 1000Z8, VPA-MK 2000Z8 — 1000–2000 W, 8 zones: production sites, malls, multi-section facilities
MC series — amplifiers with remote zone control
Six-zone amplifiers for large facilities where announcements must be made from several posts. Their key feature is support for the VPA-MC6 remote paging console: up to 6 consoles connect to a single amplifier, letting an operator select zones and make announcements away from the amplifier itself. Four microphone inputs with individual +48V phantom power, a dedicated emergency announcement input (EMC) with priority, a built-in MP3 player (USB / SD / Bluetooth / FM) and automatic background-music ducking during an announcement.
- VPA-MC 120Z6 — 120 W, 6 zones
- VPA-MC 350Z6 — 350 W, 6 zones
- VPA-MC 650Z6 — 650 W, 6 zones
- VPA-MC6 — remote paging console: direct 6-zone selection, ALL CALL, USB / Bluetooth, twisted-pair connection up to 800 m, cascading of up to 6 consoles
How to choose a mixer amplifier
Selection starts with two parameters — the system's total power and the number of independent zones. Add up the power of all loudspeakers and allow a 20–30% headroom: for example, 10 ceiling speakers of 10 W each → 100 × 1.3 = 130 W, and the VPA-MK 150Z3 is the ideal fit. If a large facility needs remote announcements from several points (a control room, security posts, reception desks), choose the MC series with VPA-MC6 consoles. For typical multi-zone tasks the MK series is enough.
Features and warranty
Every amplifier uses a Class-D design with protection against overload, short circuit and overheating; the stated service life is at least 10 years. EAC certificate of conformity, 24-month warranty, ex-stock dispatch.
