Design and operating principle
The unit uses an enclosed two-way design (6.5″ LF/MF + 3″ HF) that delivers a wide 50 Hz – 20 kHz frequency range and natural reproduction of music programs. It connects to a 70–110 V PA line through a built-in matching transformer with 30/40 W power taps. Sensitivity is 93 dB, with continuous sound pressure up to 108 dB and a peak SPL of 111 dB.

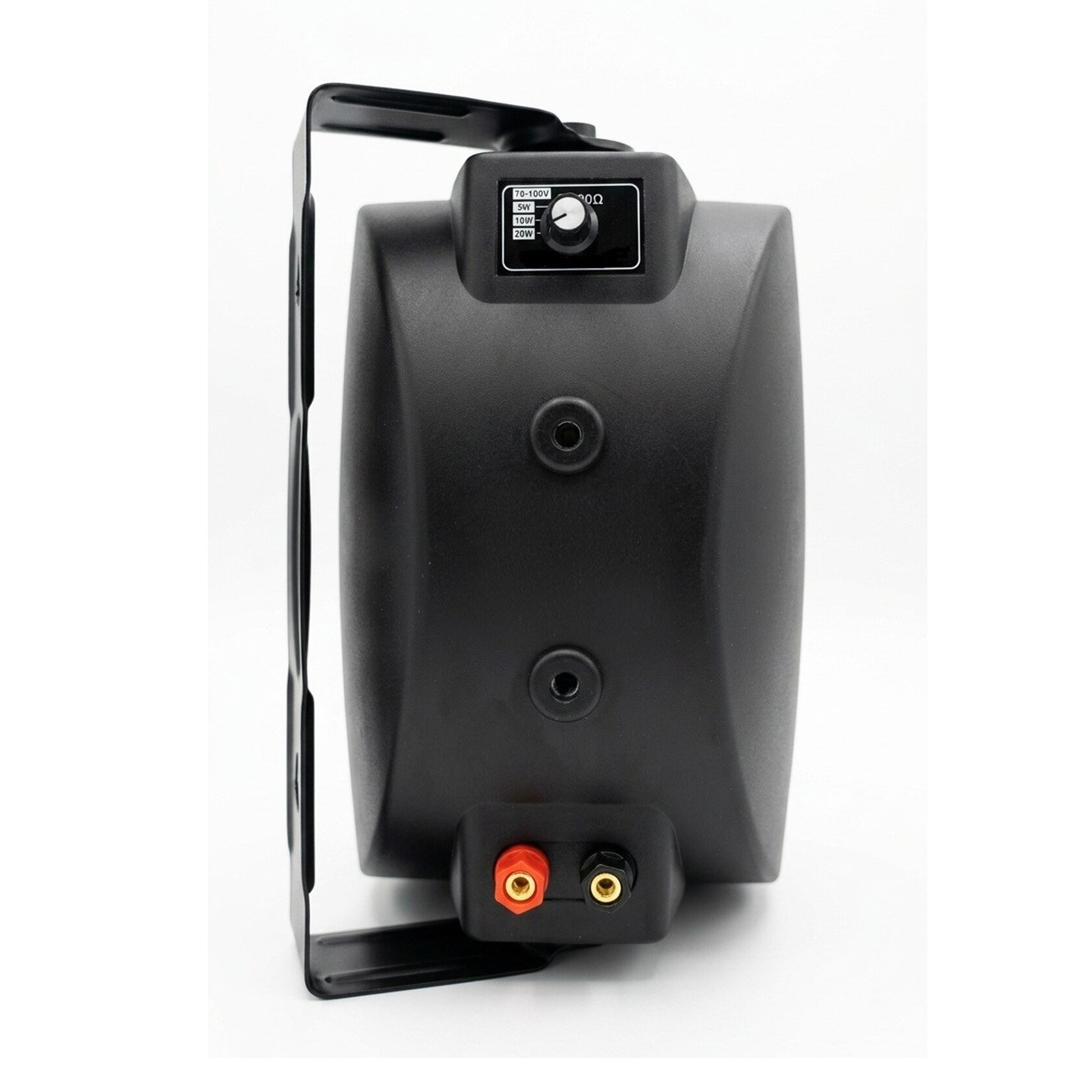

The enclosure is black, with wall-mount installation. IP44 ingress protection rating, operating temperature range from −10 °C to +55 °C. Typical sites: conference rooms, restaurants and cafés, retail floors, offices and lobbies.
Warranty and certification
- EAC certificate of conformity
- 24-month manufacturer's warranty
- Service life of at least 10 years.
